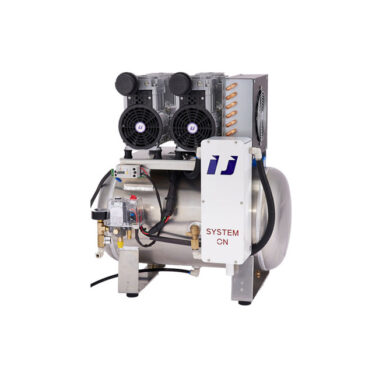

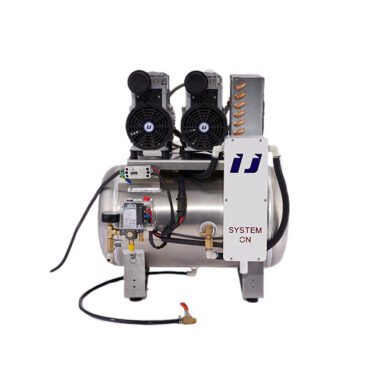

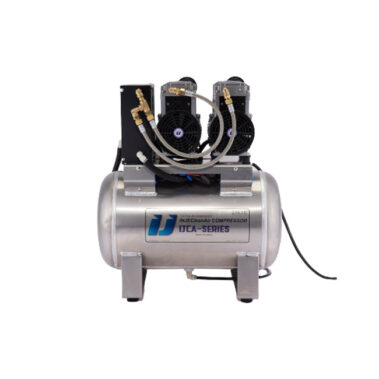

Dental Compressor
IJCA-2HP
For 3-4 chairs

COMPRESSOR SPEC

  • Oil-free reciprocating method
  • Air supply : 280L/min (1Mpa=80L/min)
  • Set control pressure : 6~8 bar
  • Maximum pressure : 10 bar
  • RPM : 1740 RPM
  • Tank capacity : 35L
  • Power : 220V 60Hz&50Hz
  • Power consumption : 1600W
  • Current consumption : 7.3A
  • Dimension: 535(L) x 400(W) x 650(H)
  • Weight : 38kg
  • Noise : 67dB
  • IJCA-DRY
    – The condensate is separated by using the principle of centrifugation and completely discharged by using differential pressure.
    – 5 µm element air filter installed by default
    (adding a 0.01 µm micro mist separator is optional)
    ※ Customer may request to not install the IJCA-DRY

Looking for a quiet and clean compressor?
“Built-in air cooled circulation system”

Dental compressor case model
IJCA-2HPC
For 3-4 chairs

COMPRESSOR SPEC

  • Dimension: 805(L) * 450(W) * 900(H)
  • Weight: 95kg
  • Noise: 55dB
  • Temperature display (Displays internal temperatures and enables temperature settings for emergency shutdown in the event of overheating)
  • IJCA-DRY
    – The condensate is separated by using the principle of centrifugation and completely discharged by using differential pressure.
    – 5 µm element air filter installed by default
    (adding a 0.01 µm micro mist separator is optional)
    ※ Customer may request to not install the IJCA-DRY
