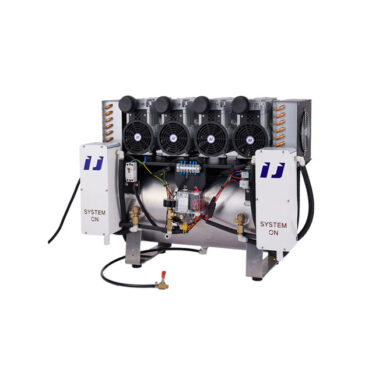

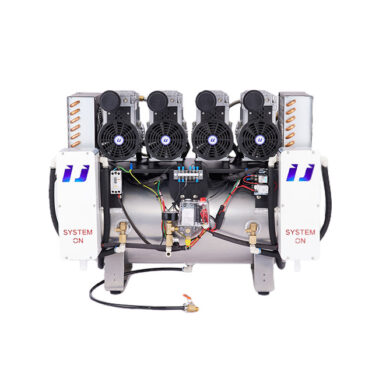

Dental Compressor
IJCA-4HP
For 8 Chair
COMPRESSOR SPEC
- Oil-free reciprocating method
- Air supply : 560L/min (1Mpa=160L/min)
- Set control pressure: 6~8 bar
- Maximum pressure : 10 bar
- RPM : 1740 RPM
- Tank capacity : 45L
- Power : 220V 60Hz&50Hz
- Power consumption : 3200W
- Current consumption : 14.5A
- Dimension : 845(L) x 400(W) x 650(H)
- Weight : 73kg
- Noise : 69dB
- IJCA-DRY
– The condensate is separated by using the principle of centrifugation and completely discharged by using differential pressure.
– 5 µm element air filter installed by default
(adding a 0.01 µm micro mist separator is optional).
※ Customer may request to not install the IJCA-DRY
Looking for a quiet and clean compressor?
“Built-in air cooled circulation system”

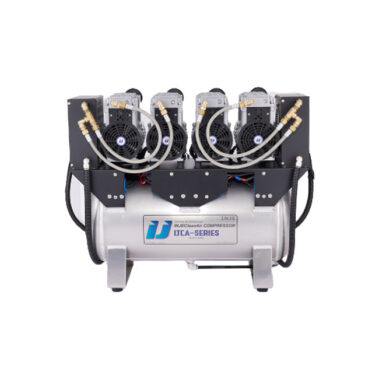

Dental compressor case model
IJCA-4HPC
For 7~8 chairs
COMPRESSOR SPEC
- Dimension: 805(L) * 450(W) * 900(H)
- Weight: 115kg
- Noise: 55dB
- Temperature display (Displays internal temperatures and enables temperature settings for emergency shutdown in the event of overheating)
- IJCA-DRY
– The condensate is separated by using the principle of centrifugation and completely discharged by using differential pressure.
– 5 µm element air filter installed by default
(adding a 0.01 µm micro mist separator is optional)
※ Customer may request to not install the IJCA-DRY
